2022.11.15 Manufacturing Date Code for SC8320CM Tank And Hopper Scale Sensor Weighing Module Loadcells

Categories Shear Beam Load Cell
Series: Shear beam load cell
Features: For platform, livestock scale
Mounting Type: screw installa
Description: IP66 waterproof, SC8320CM
Manufacturing Date Code: 2022.11.15
Model Number: SC8320CM
Type: Load Cell
Place of Origin: Guangdong, China
Brand Name: SNC
Use: Force measurement
Theory: strain gauge sensor
Output: mV/V
Capacity: 50KG-3000KG
Creep: 0.02%RO/30min
Accessory: mounting module
Zero balance: ±1.0 %RO
thread dimension:: M16
Input resistance: 365±10ohm
Combined error: ≤±0.020 % RO
Ultimate overload: 150%RO
size :: 130 x 31.8 x 31.8 mm
Application: silo, talk, mixer scale weighing system
Packaging Details: SC8320C shear load cell , 16 units per box
Port: shenzhen, Hongkong, any port of China
Supply Ability: 10000 Piece/Pieces per Month SC8320CM Electronic Sensor Alloy Steel Weighing Module Load Cell
MOQ: 4 pieces
Price: $69/pieces 4-99 pieces
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2022.11.15 Manufacturing Date Code for SC8320CM Tank And Hopper Scale Sensor Weighing Module Loadcells

SC8320CM Tank And Hopper Scale Sensor Weighing Module Loadcells

Product List

Sensorcon Product Lists
Strain GaugeLoad CellTorque SensorDisplay
Linear Strain gauge-AAWireless sensorSlip ring rotary torque sensorPlatform scale display
Half bridge strain gauge-BB,HA,GB,FBMicro load cellContactless rotary torque sensorTruck scale display
Shear/torque strain gauge-AB,HASingle point load cellStatic torque sensorController
Full bridge strain gauge-EB, FG,FDButton load cellMetersJunction box
Tee Rosettes strain gauge-CA,BAShear beam load cellCouplingBig screen display
Round type strain gaugeS type load cellAmplifier
Semi-conductor strain gaugeColumn load cell
Bridge type load cell

Product Overviews
SC8320CM Tank And Hopper Scale Sensor Weighing Module Loadcells

Features:

Model: SC8320CM

Capacity range: 100kg, 200kg, 300kg, 500kg, 1ton, 2ton, 3ton
Alloy steel loadcell, Welded-seal, IP67 , oil proof, waterproof and anti-corrosion.
Single shear beam, easy installation.
High accuracy and low profile.
Apply to: Tank scale, silo, mixer weighing system


Parameters:

ApplicationTank scale, silo, mixer weighing system
ModelSC8320CM
Capacity100kg, 200kg, 300kg, 500kg, 1ton, 2ton, 3ton
rated output2.0±0.004mV/V
Accuracy classC2 C3
maximum number of verification intervals2000 Nmax 3000 Nmax
Minimum loadcell cerification intervalsEmax/5000Vmin Emax7500 Vmin
Combined error≤±0.030 % RO ≤±0.020 % RO
Creep0.02%RO/30min
Temp. effect on sensitivity0.0016 %RO/℃ 0.0012 %RO/℃
Temp.effect on zero0.003%RO/℃ 0.002%RO/℃
Zero balance±1.0 %RO
Input resistance365±10ohm
Output resistance350±3 ohm
insulation resistance5000 MΩ(50V)
Recommended excitation voltage5-12V
Compensated temperature range-10-+40℃
operating temperature range-35-+80 ℃
safe overload120 %RO
Ultimate overload150%RO
loadcell materialalloy steel
Connecting cableΦ5.7x2m
Method of connecting wireRed- input+, black- Input-. Green- Output+, White- output -

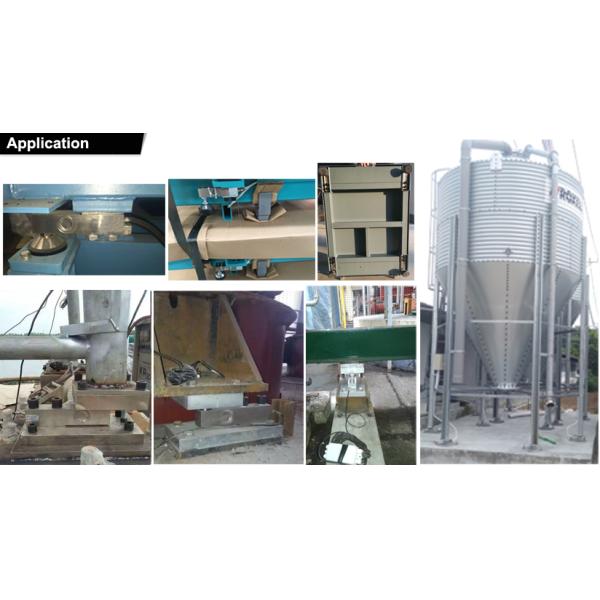

SC8320CM shear beam load cell with mounting module for silo, tank mixer


SC8320CM Tank And Hopper Scale Sensor Weighing Module Loadcells


SC8320CM Tank And Hopper Scale Sensor Weighing Module LoadcellsSC8320CM Tank And Hopper Scale Sensor Weighing Module Loadcells

SC8320CM Tank And Hopper Scale Sensor Weighing Module Loadcells


SC8320CM Tank And Hopper Scale Sensor Weighing Module Loadcells

Related Products

SC8320CM Tank And Hopper Scale Sensor Weighing Module Loadcells


Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.


Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

SC8320CM Tank And Hopper Scale Sensor Weighing Module LoadcellsSC8320CM Tank And Hopper Scale Sensor Weighing Module Loadcells


Packaging & Shipping

SC8320CM Tank And Hopper Scale Sensor Weighing Module Loadcells

Why Choose Us

SC8320CM Tank And Hopper Scale Sensor Weighing Module Loadcells


FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
