WT-11-UNL High Baud Rate Compatibility For Fast Data Transfer With GPS Module

Categories GPS Module
Brand Name: OTW
Model Number: WT-11-UNL
Place of Origin: China
MOQ: 10pcs
Price: US $2.4 - 11.80/
Payment Terms: T/T, Western Union
Supply Ability: Above US$100 Million
Delivery Time: 7-10working days after receiving the payment
Application: Positioning, surveying and mapping, etc
Type: GNSS Module
Country of Origin: CHINA
Brand: OTW
Operating mode: GPS+GLONASS+ BDS
Output Mode: UART+TTL+R232
Baud rate: 4800bps-921600bps,Default9600bps
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

WT-11-UNL High Baud Rate Compatibility For Fast Data Transfer With GPS Module

WT-11-UNL High Baud Rate Compatibility For Fast Data Transfer With GPS Module

Overview

Application:
●Car navigation, traffic recorder
●Drones, law enforcement cameras
●Hd camera, surveying and mapping
●Handheld device
●Smart wear
●Smart agriculture
Features:
●Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)
●Minimum current consumption
●Excellent positioning accuracy in urban canyons
●With security and integrity protection
●Supports all satellite augmentation systems
●Built-in low noise amplifier LNA and filter SAW

Bottom view

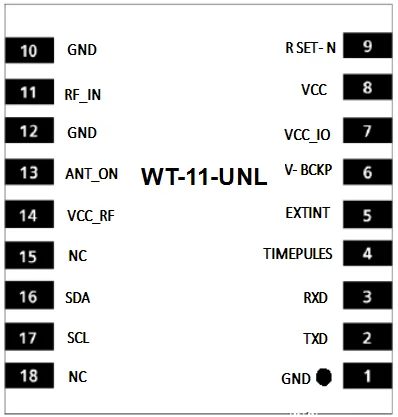

Module pin allocation
Module performance
Model WT-11-UNL
Receiver type

GPS/QZSS :L1C/A
Galileo:E1-B/C
GLONASS:L1OF
BeiDou:B1|

Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps(default 9600bps)
Channel 72
Sensitivity Tracking: -167dbm Capture: -158dbm Cold start -148dbm
Cold start Average 26seconds
Hot start Average 1 seconds
Accuracy Horizontal Position : average, SBAS < 2.0m
18Max Height 18000 M
Max Speed 515 m/s
Max Acceleration ≦ 4G
Regeneration frequency 1Hz -18 Hz
Positioning mode A-GNSS
Port
Port

2 URAT
1 I2C
2 SPI

Physical property
Type 18 pin stamp holes
Size 10.1mm * 9.7mm * 2.4mm (+/- 0.5mm)
Power supply
Voltage 1.65V~3.6V
Power Consume

Operation mode: 21 mA@3.0V, power saving mode: 5.3 mA@3.0V (PSM, 1hz)

Oerating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 125℃
