ALE070 Series High Precision High Torque Planetary Gearbox Helical From 3 To 10 Reduction Ratios

PRMCAS -Automate in A Better Way-

Precise and Reliable Motion Control Automation Solutions

More than 15-years industrial Motion Control Experiences
ALE070 Series 1-stage RATIO 3 to 10 Extra High Precision Cost-effective Helical Gear Planetary Gearbox For CNCs And Various Industrial Automation Applications

PRMCAS extra high precision ALE070 cost-effective SERIES helical gear planetary gearboxs are widely used in high-end industrial automation fields, such as,

CNC machinese, including cutting, engraving, milling etc, of materials such as wood, metals, stones, glasses, etc.
Laser machines, such as cutting, marking, soldering, etc.
Plasma machines, textile machines, printing machines, food processing and medical machines, packaging machinesetc.
Other industrial segments, such as conveying system, SPM automation system, aero space industry etc.

MAIN DIFFERENCES between spur/straight gear and helical gear planetary reducers are as the followings,
First, Structural differences between helical gear and straight gear.
Planet reducer consists of planet wheels, solar wheels, and internal gears, and the difference between helical gear and straight gear lies in the shape of the planet wheel. The gear of the helical planet deceleration machine is inclined, while the gear of the straight gear planet deceleration is parallel to the axis of the planet.
Second, the difference in efficiency differences between helical gear and straight gear
Under the same conditions, the efficiency of slashing gear planet reducer is lower than that of straight -gear planet decelerations. This is because the planet wheel of the planetary reducer is tilted, which makes the bearing inheritance more powerful and increased friction loss. The straight -gear planet deceleration machine can better use the transmission capacity, and its efficiency has improved.
Third, the noise difference between helical gear and straight gear.
The planetary wheel of the planetary reducer is tilted, causing a certain radial force when the gear meshing, increasing the vibration and noise during transmission. The parallel of the gear of the straight gear planet reducer reduces the vibration and noise during the transmission. Therefore, in terms of noise, straight -gear planet reducer is superior to helical planet reducer.

In summary, the helical and straight -gear planet reducer has different advantages and disadvantages, and the application scenarios are different. In terms of high -efficiency and low noise, straight -gear planet reducer is better than that of diagonal gear planetary reducer, while in terms of high -torque and high -precision transmission, the performance of helical gear planet reducer is even better. In actual use, the corresponding products need to be selected according to the actual scene.

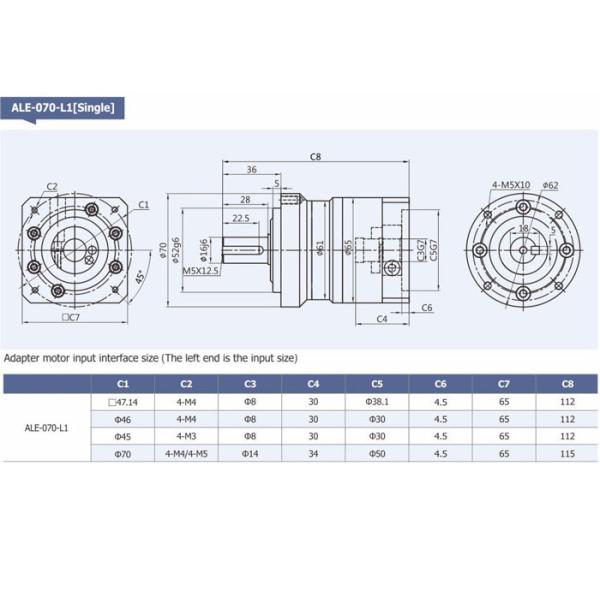

ALE070 Series Helical Gear Planetary Gearbox General Technical Specifications

ALE070 Series 1-stage models main technical data

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended or customized.

More Types of HELICAL Gear Planetary Gearboxes Available

• Warranty period is from 18months to 2 years depending on products.
• 24*7 customer technical support by email, WhatsApp, TeamViewer, voice or video call etc.
• Remote or onsite technical training services etc.
• More services as per customer need.

For over 15 years, Kaifull Automation Group has been a leading provider of motion control products and solutions in the Chinese middle and high-end industrial automation market, earning a great reputation and appreciation from customers.

Our cutting-edge R&D and production technology allows us to offer a wide range of motion control and general purpose industrial automation products, such as Hybrid Steppers, Servos, Precise Positioning Systems, Electrical Cylinders, Planetary/Harmonic/Worm Gearboxes, Hybrid Linear Steppers, real Linear Motors Drives, Geared Rotary Actuators, Spindles, VFDs/Invertors, CNC Motion Controllers, etc., all with a minimum of 18 months warranty and 7*24hours technical services. We also provide automation machine solutions for various industries, such as Electronics, Medical, Packing, CNC, Laser/Plasma, Printing, Factory Automation, and New Energy. Our products cover most industrial automation applications, including electronics, professional industrial CNCs, civil CNCs (laser, plasma, machine tool cutting, engraving, milling, marking, soldering, etc.), medical, aerospace, packing, printing, new energy, auto motives, robotics, etc.

Our company's key advantages include customer-oriented product design, international R&D cooperation, strict production and quality assurance systems, long-term partnerships, fast delivery and strong services, and flexible customization.

We are currently working with customers from over 10 countries and supporting many international big brands, and we look forward to building strong partnerships with more customers or agents.
