Hot 8x10/100M POE+2xUP-link IEEE802.3af/at POE Etherent switch for IP Camera/phone Network switch

Hot 8x10/100M POE+2xUP-link IEEE802.3af/at POE Etherent switch for IP Camera/phone Network switch

UT-PS0802F

Products Features:

1). 8*10/100Mbps POE port, 2*10/100Mbps UP-Link port

2). Extend Distance up to 250meters

3). Support IEEE802.3AF/AT Power over Ethernet PoE

4). Whole Power: 120W (52V 2.8A), Each port: <30W.

5). 2Gbps bandwidth

6). Automatically detects the PoE class level of a Powered Device

7).Status LEDs: System Power, PoE:100Mbps, and Link / Activity

8).Support Store-and-forward switching method

9).All port supported by MDI/MDIX auto flip and self negotiation

10).Supply 8 10/100Mpbs adaptive high speed forwarding data packet non-lost port.

11).Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.

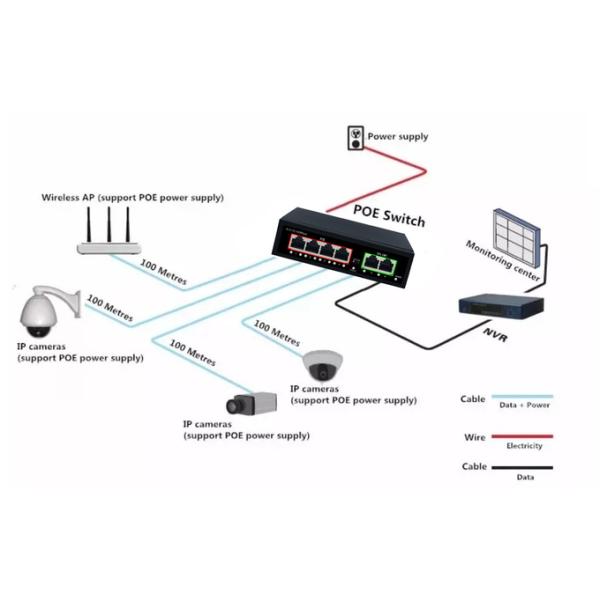

Application:

Wireless Access Point

IP Camera

IP Phone

Computer Networks

Technicial Parameters:

Products Show:

Ordering information:
